Ishusho ya AWWA C504 Centerline Butterfly Valve igaragara

Valve y'ikinyugunyugu ya AWWA C504 yo mu gace k'imbere

AWWA C504 ni yo ngamba ikoreshwa mu gupima ibinyugunyugu bifunze neza nk'uko byagenwe n'ishyirahamwe ry'Abanyamerika rishinzwe amazi. Ubunini bw'urukuta n'umurambararo w'umugozi w'iyi ngamba isanzwe y'ibinyugunyugu ni binini kurusha ibindi ngamba. Bityo igiciro kizaba kiri hejuru y'ibindi ngamba.

Ingano:2”-72”/DN50-DN1800

Igipimo cy'umuvuduko:Icyiciro cya 125B/Igice cya 150B/Igice cya 250B

Garanti:Amezi 18

Izina ry'ikirango:Valve ya ZFA

Serivisi:OEM

Tundikire kuri imeri

Ibisobanuro birambuye ku gicuruzwa

Ingano n'igipimo cy'umuvuduko n'ibipimo bisanzwe
Ingano	DN40-DN1800
Igipimo cy'umuvuduko	Icyiciro cya 125B, Icyiciro cya 150B, Icyiciro cya 250B
Imbonankubone indwara zandurira mu mibonano mpuzabitsina	AWWA C504
Ihuza ry'indwara zandurira mu gitsina (STD)	ANSI/AWWA A21.11/C111 Ikirango cya ANSI cyo mu bwoko bwa Flanged Class 125
Utudomo two hejuru twa STD	ISO 5211

Ibikoresho
Umubiri	Ibyuma bikozwe mu cyuma gishyushye, WCB
Disiki	Ibyuma bikozwe mu cyuma gishyushye, WCB
Igiti/Urugo	SS416, SS431
Intebe	NBR, EPDM
Gutera ibihuru	PTFE, Umuringa
Impeta ya O	NBR, EPDM, FKM
Umukoresha w'ibikoresho	Agakoresho k'intoki, Agasanduku k'ibikoresho, Igikoresho cy'amashanyarazi, Igikoresho cy'umwuka

Imurikagurisha ry'ibicuruzwa

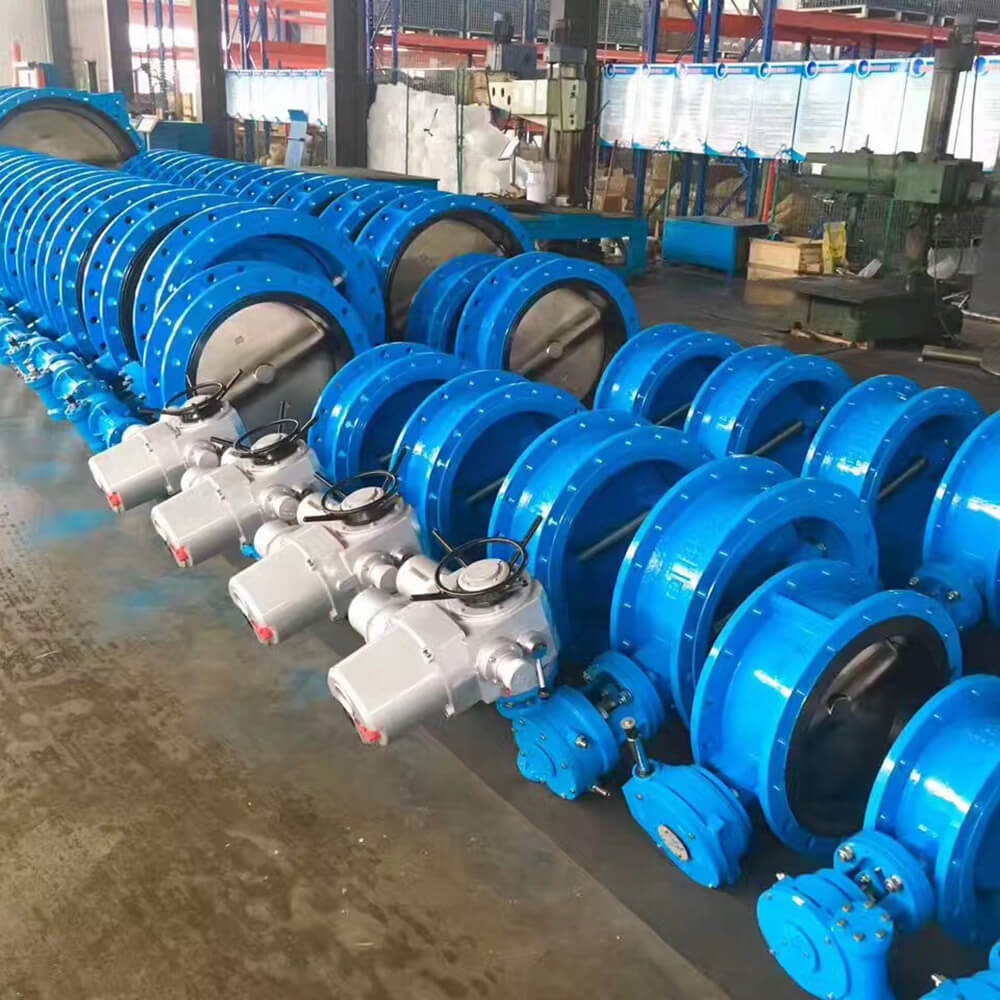

Valve y'ubwoko bwa Flange Butterfly (28)

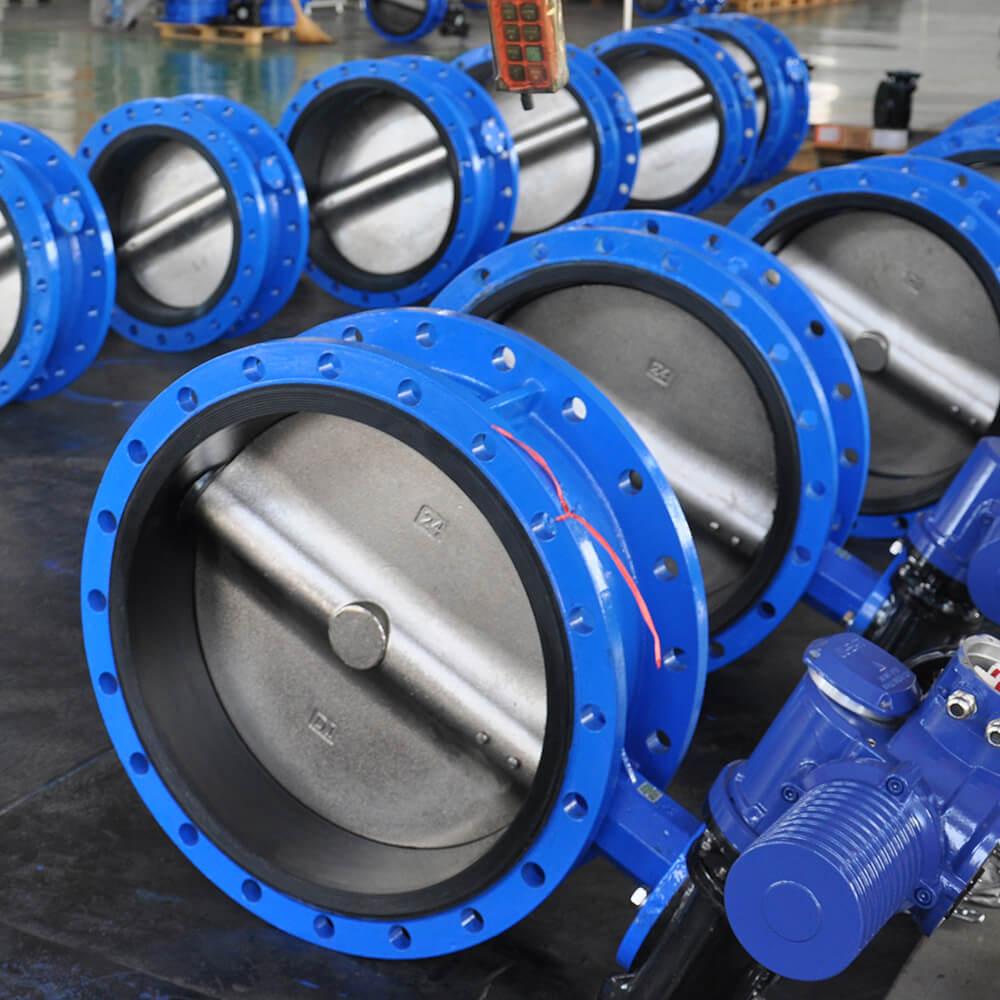

Valve y'ubwoko bwa Flange Butterfly (20)

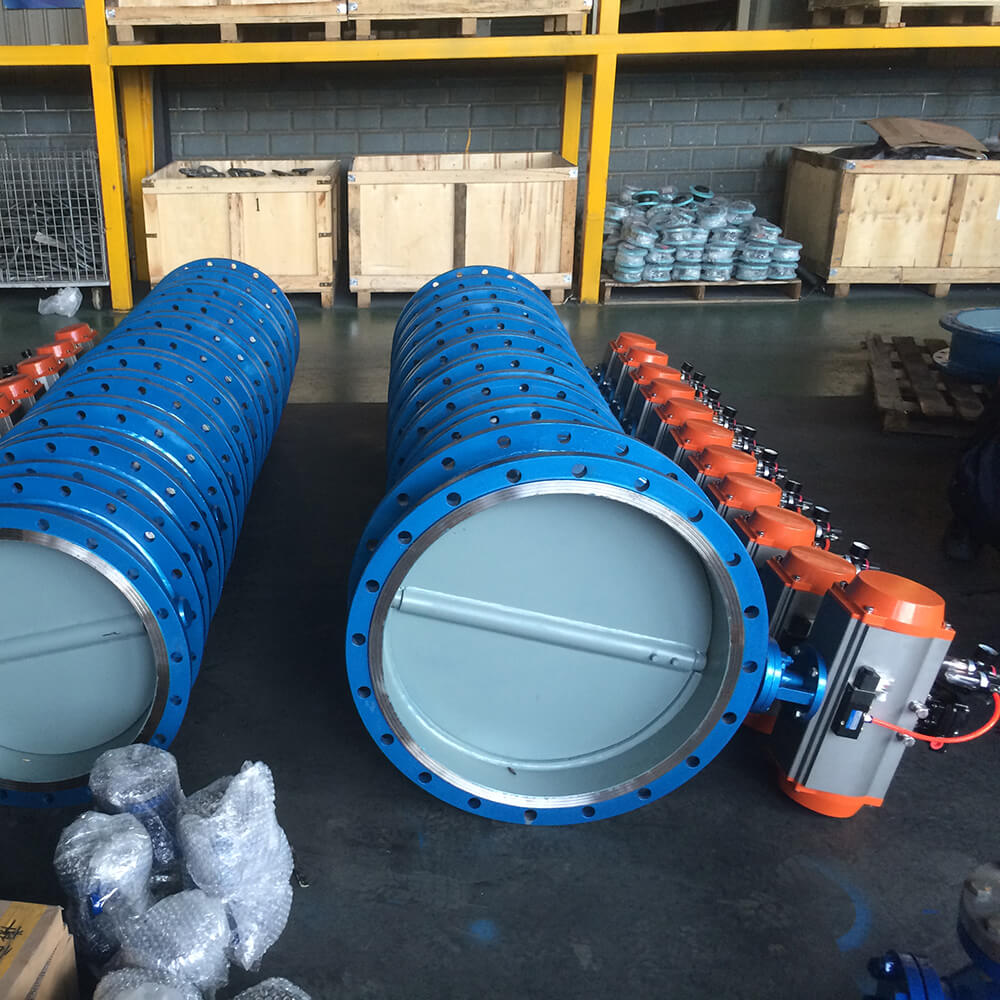

Valve y'ubwoko bwa Flange Butterfly (26)

Akamaro k'ibicuruzwa

Ibiranga bisanzwe

• Imbere n'inyuma hatwikiriwe na epoxy, ifite imbaraga nyinshiumubiri w'icyuma

• Intebe ya Buna-N cyangwa EPDM, ishobora gusimburwa n'indi myanya cyangwaguhindurwa hakoreshejwe ibikoresho bisanzwe

• Imyanya yo kwinjira mu cyerekezo kimwe nta gusohoka kugeza ku gitutu cyuzuye

• Ibyuma byo gufunga imigozi byigenga

• Ubwoko bwa 316 bw'ibyuma bifunga inyuma by'icyuma kidashonga

• Integral FA actuator mounting pad, ikuraho brackets

AWWA Butterfly Valves ni valve zikomeye, zishobora gukoreshwa mu buryo butandukanye kandi zizewe zikoreshwa mu mazi buri giheinganda ziyungurura, aho zipompa, imiyoboro n'inganda zitanga amashanyarazi kugira ngo zishyireho ibikoresho cyangwa sisitemu. Ingano za valve z'ibinyugunyugu zigera kuri santimetero 24 kugeza kuri santimetero 72 zikoresha icyuma gikozwe mu buryo bwa ductile gifite intebe ya Buna-N cyangwa EPDM ishobora gusimburwa hamwe na disiki y'icyuma ikozwe mu buryo bwa ductile ifite intebe ya 316SS kugira ngo ifunze neza mu cyerekezo kimwe ku gitutu gito kandi kiri hejuru.
