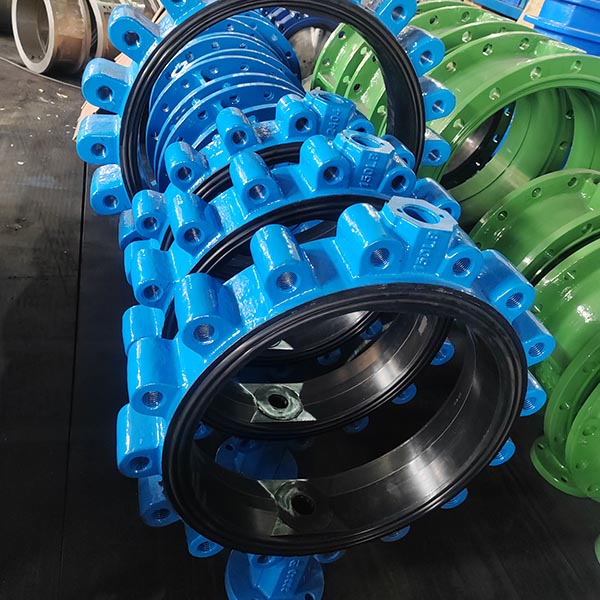

Intebe ya EPDM ishobora gusimburwa ifite icyuma gifunganye cy'ubwoko bwa valve y'ikinyugunyugu. Ishusho yagaragaye

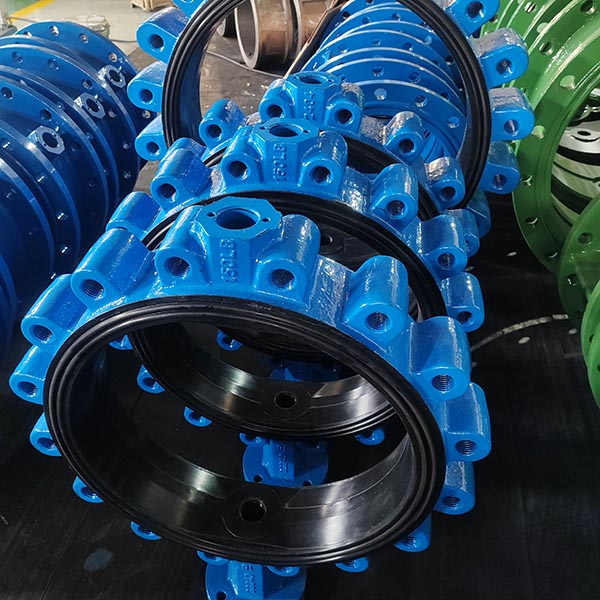

Intebe ya EPDM ishobora gusimburwa na Ductile Iron Lug yo mu bwoko bwa Butterfly Valve Umubiri

Valve yacu ya ZFA ifite ubwoko butandukanye bw'umubiri w'urugi rw'ibinyugunyugu ku bakiriya bacu kandi ishobora no guhindurwa. Ku bikoresho by'umubiri w'urugi rw'ibinyugunyugu, dushobora kuba CI, DI, icyuma kidashonga, WCB, bronze n'ibindi.

Ingano:2”-64”/DN50-DN1600

Igipimo cy'umuvuduko:PN10/16, JIS5K/10K, 150LB

Garanti:Amezi 18

Izina ry'ikirango:Valve ya ZFA

Serivisi:OEM

Tundikire kuri imeri

Ibisobanuro birambuye ku gicuruzwa

Ingano n'igipimo cy'umuvuduko n'ibipimo bisanzwe
Ingano	DN40-DN1600
Igipimo cy'umuvuduko	PN10, PN16, CL150, JIS 5K, JIS 10K
Imbonankubone indwara zandurira mu mibonano mpuzabitsina	API609, BS5155, DIN3202, ISO5752
Ihuza ry'indwara zandurira mu gitsina (STD)	PN6, PN10, PN16, PN25, 150LB, JIS5K, 10K, 16K, GOST33259
Utudomo two hejuru twa STD	ISO 5211
Ibikoresho
Umubiri	Icyuma gikozwe mu cyuma (GG25), Icyuma gikozwe mu cyuma gikozwe mu cyuma (GGG40/50), Icyuma cya karuboni (WCB A216), Icyuma gikozwe mu cy ...
Disiki	DI+Ni, Icyuma cya Karuboni (WCB A216), Icyuma kidasesagura (SS304/SS316/SS304L/SS316L), Icyuma kidasesagura cya Duplex (2507/1.4529), Umuringa, DI/WCB/SS gitwikiriwe na Epoxy Painting/Nylon/EPDM/NBR/PTFE/PFA
Igiti/Urugo	SS416, SS431, SS304, SS316, Ibyuma Bidasaza Bibiri, Monel
Intebe	NBR, EPDM/REPDM, PTFE/RPTFE, Viton, Neoprene, Hypalon, Silicon, PFA
Gutera ibihuru	PTFE, Umuringa
Impeta ya O	NBR, EPDM, FKM
Umukoresha w'ibikoresho	Agakoresho k'intoki, Agasanduku k'ibikoresho, Igikoresho cy'amashanyarazi, Igikoresho cy'umwuka

Imurikagurisha ry'ibicuruzwa

Valve y'ikinyugunyugu yo mu bwoko bwa Lug (40)

Valve y'ikinyugunyugu yo mu bwoko bwa Lug (35)

Valve y'ikinyugunyugu yo mu bwoko bwa Lug (36)

Akamaro k'ibicuruzwa

Valve y'ikinyugunyugu ikoreshwa muri rusange ikozwe hakurikijwe EN 593. Urutonde rw'ibikoresho bisanzwe biboneka mu bikorwa bitandukanye.

Ubwo bwoko bwa valve y'ikinyugunyugu ifite intebe yoroshye ishobora gusimburwa,Igishushanyo mbonera cy'intebe y'ururimi n'umuyoboro gifunga intebe mu mwanya wayo kandi kigaha ubushobozi bwo kudakora neza

-Disiki ya valve y'ikinyugunyugu ifite uburebure bw'impande ebyiri, ifunga neza kandi nta gusohoka kw'amazi mu gihe cyo kugerageza umuvuduko.

-Umurongo ugenda ugororotse. Ubushobozi bwiza bwo guhindura.

-Imiterere y'ikibaho cyo hagati, imbaraga nto zo gufungura no gufunga

-Ascenseur ndende. Ihangane n'igeragezwa ry'ibikorwa ibihumbi byo gufungura no gufunga.

-Ikizamini cy'intebe: amazi akubye inshuro 1.1 z'umuvuduko w'akazi kugira ngo habeho ko nta biburungu bifunga.

Ikizamini cy'imikorere/imikorere: Mu isuzuma rya nyuma, buri vali n'igikoresho cyayo (ikiyobora amazi/ibikoresho/igikoresho cy'umwuka) bikorerwa ikizamini cyuzuye cy'imikorere (fungura/funga). Ikizamini gikorwa nta gitutu cyangwa ubushyuhe buri mu kirere. Gituma habaho imikorere myiza y'igikoresho cya vali/igikoresho cy'amashanyarazi, harimo ibikoresho nka vali za solenoid, swichi zigabanya umuvuduko, ibyuma bigenzura imikorere y'umwuka, n'ibindi.

Iyi valve ikoreshwa cyane cyane mu kugenzura imiyoboro y'amazi, umuvuduko w'amazi n'ubushyuhe mu bikorwa bitandukanye by'inganda, nko: ingufu z'amashanyarazi, peteroli, ibyuma, kurengera ibidukikije, gucunga ingufu, uburyo bwo kurinda inkongi n'ubucuruzi bw'utumashini tw'ibinyugunyugu.

Muri icyo gihe, valve y'urugi ifite ubushobozi bwo kugenzura amazi kandi yoroshye kuyikoresha.

Ntabwo zikoreshwa cyane gusa mu nganda rusange nka peteroli, gaze, imiti, gutunganya amazi, nibindi, ahubwo zikoreshwa no mu buryo bwo gukonjesha amazi y’inganda zitanga ingufu zishyuha.
